SMARTELLA bathroom radiator 250x1490mm, white matt

  excl. VAT incl. VAT
Your price / Piece 448,99 € 534,30 €
stock 5 Piece
Ovčáry u Kolína: 5 Piece
Piece

We recommend buy


Logo: Sapho
Order codeMI1427

Description

Properties

Brand   SAPHO
Series   SMARTELLA

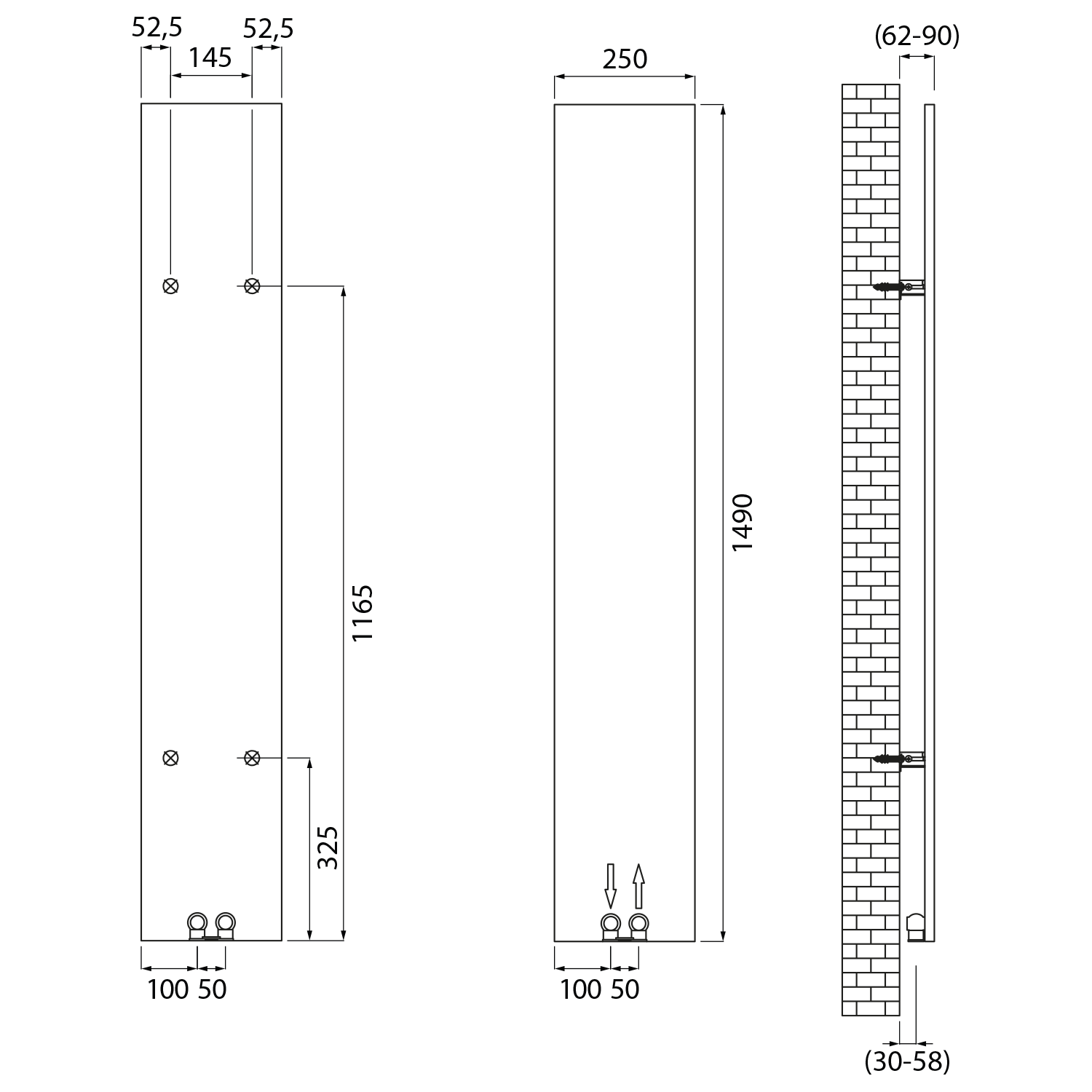

Size   250x1490 mm
Width   250 mm
Height   1490 mm
Colour   White mattWhite matt White matt
Material   Steel
Shape   Design, Panel
Heating type   Central heating
Connection with 50 mm centers   Symmetric (Center)
Connection centers   50 mm
Temperature gradient   75/65/20 °C
Equipment   Towel holder: additional equipment
Weight / Piece   22.0 kg
Packaging   1 Piece
Warranty   2 years

Explanations

Central heating

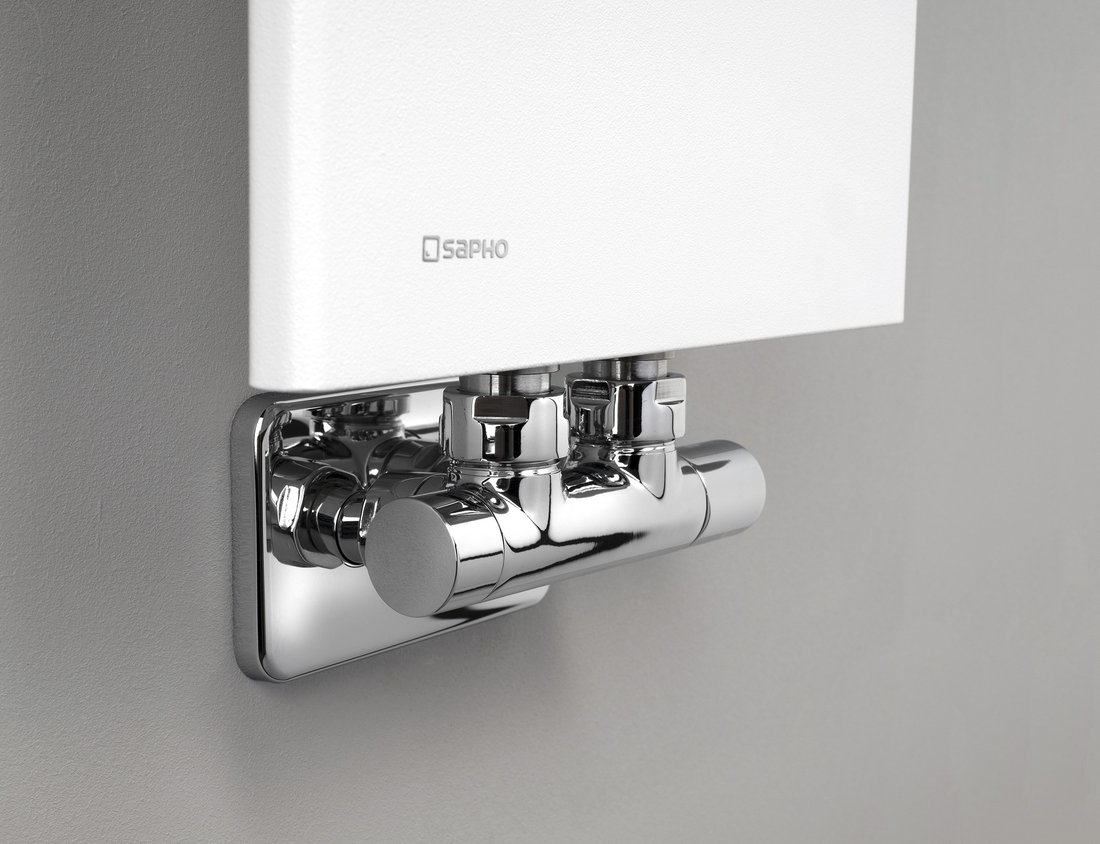

In the case of central heating, the selection of the connection valves is very important. You can choose between using a manual valve or a valve with a thermostatic head.

Manual valve: Temperature control is carried out manually. The hot water supply can be connected to the left/right side of the valve without limitation.
A valve with a thermostatic head: the integrated thermostat maintains the temperature inside the towel rail. The thermostatic head must be located at the hot water inlet (except MONO ONE).

The connection valves we offer are supplied with a clamping fitting for the most common pipes (Ø15 mm for copper and Ø16 mm for Alupex), so there is no need to buy anything else for the connection. For covering the inlet pipes and holes in the wall, we recommend the addition of cover rosettes.

Towel rail with a 50 mm connection spacing
Towel rail with side connection
Towel rail with a single-point connection

Ask

Downloads

Documents - Instruction
